For a layer of thickness δ y a distance y from the neutral axis, which passes through the centroid, the second moment of area for the layer is: Second moment of area of strip = y 2 δ A = y 2 b δ y. The total second moment of area for the section is thus: (5.4.11) Second moment of area = ∫ − d / 2 d / 2 y 2 b dy = b d 3 12.

Second moment of area YouTube

In this video we introduce the second moment of area / inertia and its significance in the behaviour of a structure, learning how to determine the second mom.

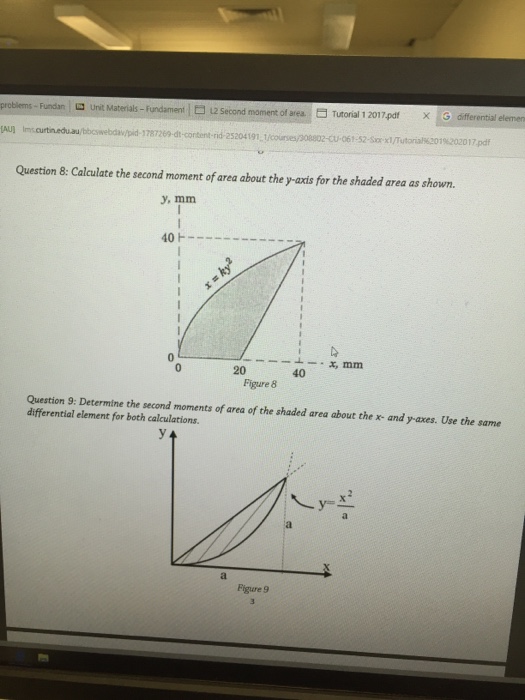

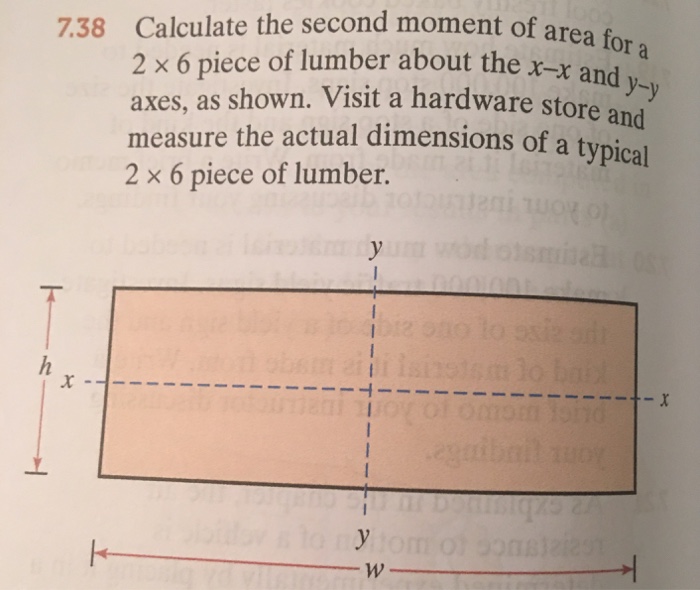

Solved Calculate the second moment of area for a 2 times 6

This calculator is used to calculate the area moment of inertia, or second moment of area, for a range of different beam cross-sections and bending axes. The area moment of inertia is a parameter that defines how much resistance the cross-section of a beam has to bending because of its geometry. Remember that the parallel […]

Parallel Axis Theorem for Area Moment of Inertia EngineerExcel

Area is 20 mm x 10 mm = 200 mm 2. First Moment of Area (relative to the bottom line) = 200 mm 2 x 25 mm = 5000 mm 3. (Note the unit is mm 3, but is not a volume!) One of it's great uses is to find the centroid , which is the average position of all the points of an object: A plane shape cut from a piece of card will balance perfectly on its.

Mechanical Engineering Archive March 03, 2016

Moment of Inertia calculators. Here is a list of the available calculation tools relative to the moment of inertia of a shape. More accurately, these tools calculate the second moment of area, which is a purely geometric property of a planar shape (not related to its mass). The second moment of area is commonly used in engineering disciplines.

Solved Determine the second moments of area with respect to

This free multi-purpose calculator is taken from our full suite Structural Analysis Software. It allows you to: Calculate the Moment of Inertia (I) of a beam section (Second Moment of Area) Centroid Calculator used to calculate the Centroid (C) in the X and Y axis of a beam section. Calculate the First moment of area (Statical Moment of Inertia.

Formula of Moment of Inertia for Basic shapes (Second Moment of area of basic shapes ) YouTube

The term second moment of area seems more accurate in this regard. Applications. The moment of inertia (second moment or area) is used in beam theory to describe the rigidity of a beam against flexure (see beam bending theory). The bending moment M applied to a cross-section is related with its moment of inertia with the following equation:

[Solved] For each section illustrated, find the se SolutionInn

The second moment of area is a geometric property. If we change the material type or grade, the second moment of area DOES NOT change. As we've already mentioned, the second moment of area has dimensions of length to the fourth power, L 4 L^4 L 4. 3.0 Geometric Axes and Sign Conventions

Second Moment of Area Calculator shapes) CalQlata

The second moment of area or second moment of inertia is a property of two-dimensional shapes. One of its main applications is describing the behaviour of beams, how they will bend given the load applied or describing buckling of columns. In these cases, the two-dimensional shape is the cross-section of the beam or column.

Solved Calculate the second moment of area about the yaxis

In this video, we'll explore the concept of the second moment of area, also known as the moment of inertia, for rectangular cross section beams. We'll start.

Solved 1Calculate first moment of area 2Calculate second

The second moment of area, or second area moment, or quadratic moment of area and also known as the area moment of inertia, is a geometrical property of an area which reflects how its points are distributed with regard to an arbitrary axis. The second moment of area is typically denoted with either an (for an axis that lies in the plane of the area) or with a (for an axis perpendicular to the.

Second Moment of Area for Beams with CompositeShape CrossSections Parallel Axis Theorem (PAT

How to calculate Second Moment of Area| Detailed explanation. Video explains moment of area of different section and its real life applicationComplete Lectur.

Solved Calculate 1. The Moment of Inertia (I) of a beam

The second moment of area measures a beam's ability to resist deflection or bending over a cross-sectional area. It is also known as the area moment of inertia. The second moment of area is used to predict deflections in beams. It is denoted by *I *and is different for different cross sections, for example rectangular, circular, or cylindrical.

Calculate area moment of inertia for square triangle circle and half Engineering Notes

Topic: Area Moment of Inertia Here, you can learn what an area moment of inertia (also known as second moment of area, or second-order area moment) is, where it finds application in engineering mechanics, and how to calculate it. Let's explore these essential concepts together.

Second Moment Of Area Beam Formula The Best Picture Of Beam

The Product Moment of Inertia is, by definition, zero for principal axes. Elastic Section Moduli: The elastic section moduli are equal to the second moments of area / moments of inertia divided by the distance to the farthest fibre in the cross-section perpendicular to the axis of bending. Values are provided for both positive and negative.

Calculation of Second Moment of Area Bending Continuum Mechanics

The area moment of inertia, also called the second moment of area, is a parameter that defines how much resistance a shape (like the cross-section of a beam), has to bending because of its geometry. Consider a thin plank that supports a 100 kg load. The plank will be much less stiff when the load is placed on the longer edge of the cross-section.
